Pentru a putea folosi acest display va trebui sa descarcam libraria U8g de pe acest site.
Alimentarea afisajului se face la +3.3V.
Pretul acestui display este de 27 lei si se poate cupara de aici.
Conexiunile intre display si Arduino le vom face conform informatiilor de mai jos:
Display --- Arduino
RST - D6
CE - D7
DC - D5
DIN - D4
CLK - D8
VCC - +3V3
Light - +3V3 sau GND (in functie de modul)
GND - GND

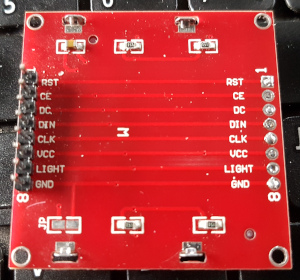

O poza cu displayul este mai jos:
Sketchul folosit este urmatorul:
#include "U8glib.h"
U8GLIB_PCD8544 u8g(8, 4, 7, 5, 6); // SPI Com: SCK = 13, MOSI = 11, CS = 10, A0 = 9, Reset = 8
void pagina1(void) {
u8g.setFont(u8g_font_6x10);
u8g.drawStr( 10, 10, "Testarea");
u8g.drawStr( 5, 20, "afisajului");
u8g.drawStr( 5, 30, "LCD Nokia");
u8g.drawStr( 10, 40, "5110");
}
void pagina2(void) {
u8g.drawFrame(1, 1, 82, 47);
u8g.drawFrame(3, 3, 78, 43);
u8g.drawFrame(5, 5, 74, 39);
u8g.drawFrame(7, 7, 70, 35);
u8g.drawFrame(9, 9, 66, 31);
u8g.drawFrame(11, 11, 62, 27);
u8g.drawFrame(13, 13, 58, 23);
u8g.drawFrame(15, 15, 54, 19);
u8g.drawFrame(17, 17, 50, 15);
u8g.drawFrame(19, 19, 46, 11);
u8g.drawFrame(21, 21, 42, 7);
u8g.drawFrame(23, 23, 38, 3);
}
void pagina3(void) {
u8g.drawCircle(22, 22, 22);
u8g.drawCircle(20, 20, 20);
u8g.drawCircle(18, 18, 18);
u8g.drawCircle(16, 16, 16);
u8g.drawCircle(14, 14, 14);
u8g.drawCircle(12, 12, 12);
u8g.drawCircle(10, 10, 10);
u8g.drawCircle(8, 8, 8);
u8g.drawCircle(6, 6, 6);
u8g.drawCircle(4, 4, 4);
}
void initial(void) {
u8g.setFont(u8g_font_6x10);
u8g.drawStr( 5, 10, "Test afisaj");
u8g.drawStr( 10, 19, "Nokia 5110");
u8g.drawHLine(0, 20, 84);
u8g.drawStr( 10, 28, "www.");
u8g.drawStr( 0, 37, "electronic");
u8g.drawStr( 25, 46, "store.ro");
}
void setup(void) {
u8g.firstPage();
do {
initial();
} while( u8g.nextPage() );
delay(1000);
}
void loop(void) {
u8g.firstPage();
do {
pagina1();
} while( u8g.nextPage() );
delay(1000);
u8g.firstPage();
do {
pagina2();
} while( u8g.nextPage() );
delay(1000);
u8g.firstPage();
do {
pagina3();
} while( u8g.nextPage() );
delay(1000);

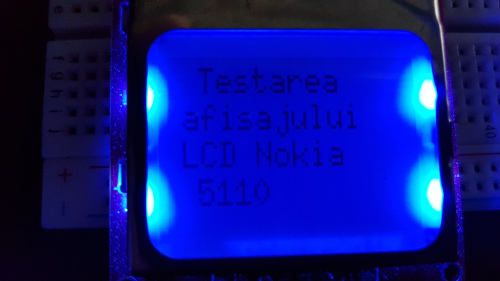

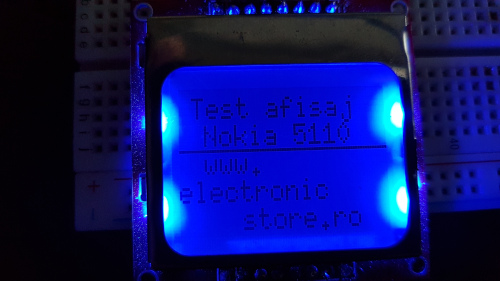

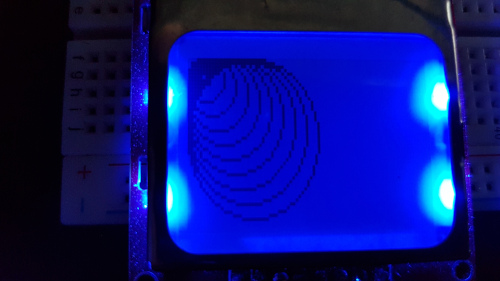

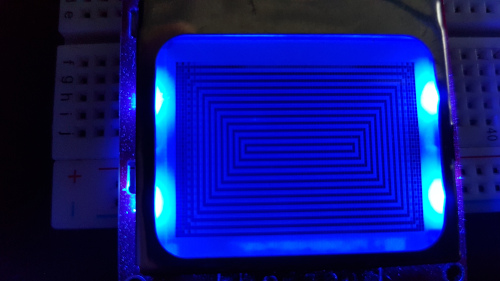

}Pozele cu afisajul in functiune sunt mai jos:
